Herringbone gear bearing · 5 planets

The classic printed gear bearing: herringbone teeth hold it together round five planets.

Demo sets & desk toys3.6 : 15 planetsRing held

Build it with your AI

Using the CheapCADTools connector, design a 3.6 : 1 planetary gear set in Planetary Gear Designer: module 1.5 mm, 20° pressure angle, herringbone teeth, a 25-tooth sun, 20-tooth planets and a 65-tooth ring, five planets, a profile shift of 0.2 on the planets, face width 15 mm. The sun: an 8 mm bore. The carrier: a one-sided (cantilevered) carrier. The carrier's output: an 8 mm bore. Check the design, apply any Auto-fix it suggests, then export every part (the sun, a planet, the ring and the carrier) as STEP and STL and give me the download link.

Paste it into Claude, ChatGPT or any AI app with the CheapCADTools connector, and it designs this planetary set with you, checks it and hands you the files. How to connect your AI.

What's in this design

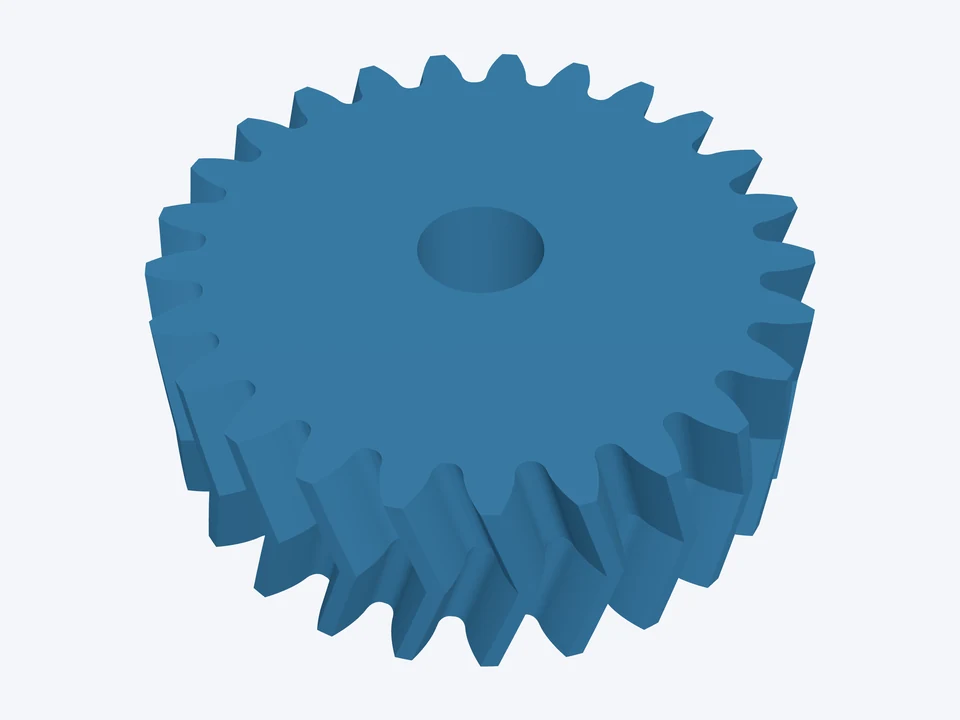

Sun

25 teeth · no shift · tip Ø41.81 mm · face 15 mm · bore Ø8 mm · no hub

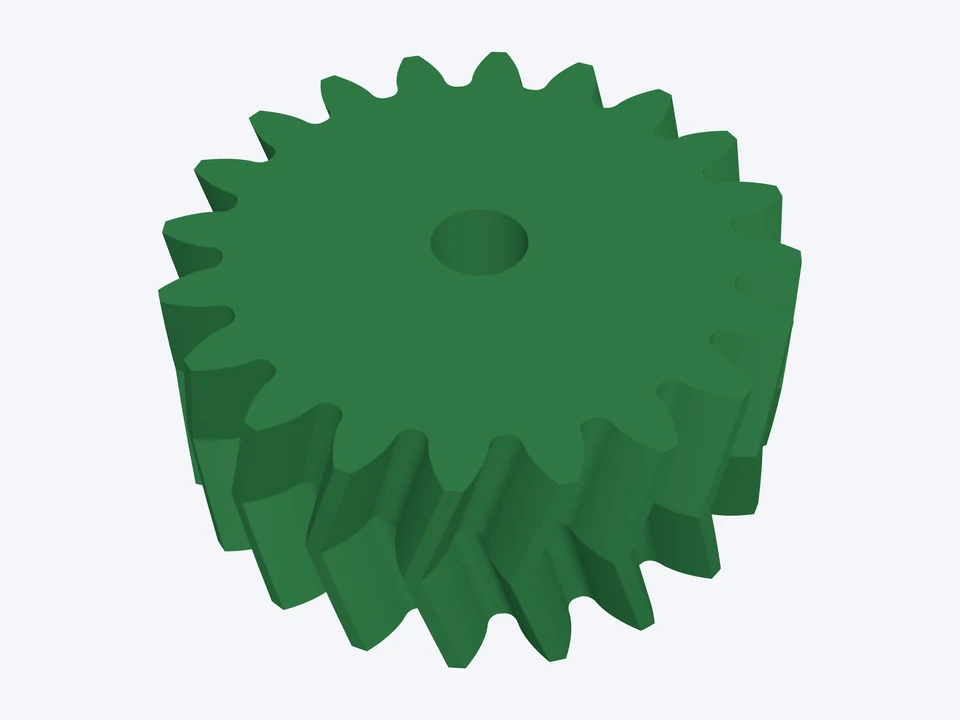

Planets · 5

20 teeth · shift +0.2 · tip Ø34.64 mm · face 15 mm · bore Ø5.3 mm on a Ø5 mm pin · print 5

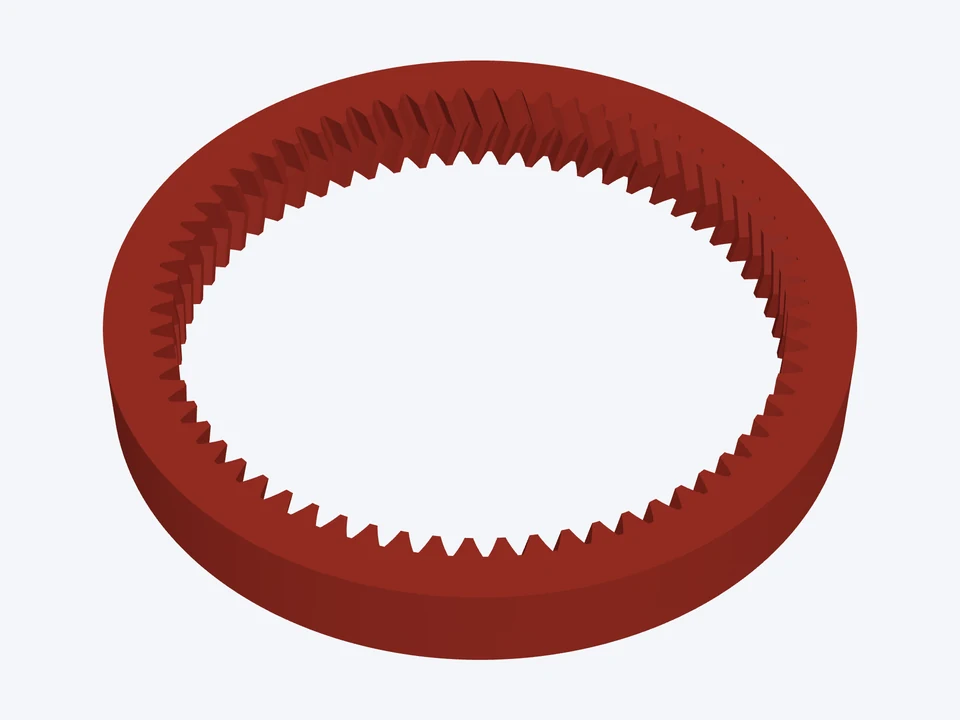

Ring

65 internal teeth · shift −0.4 · outside Ø121.16 mm · rim 7.5 mm below the roots

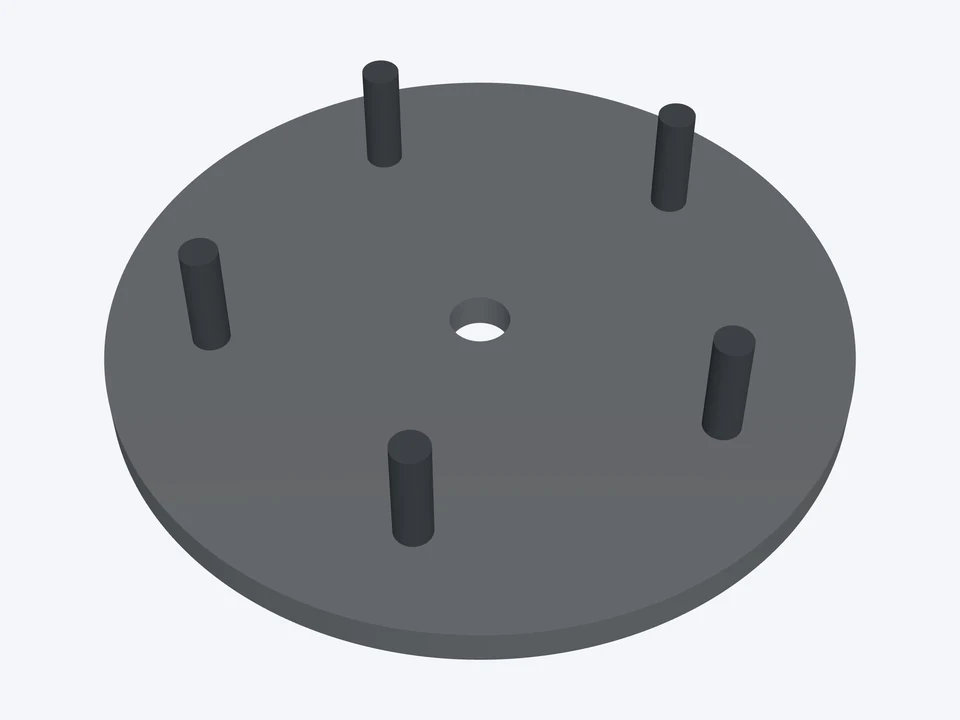

Carrier

cantilevered (one disc) · disc Ø98.14 × 5 mm · 5 pins Ø5 × 20.5 mm · output bore Ø8 mm

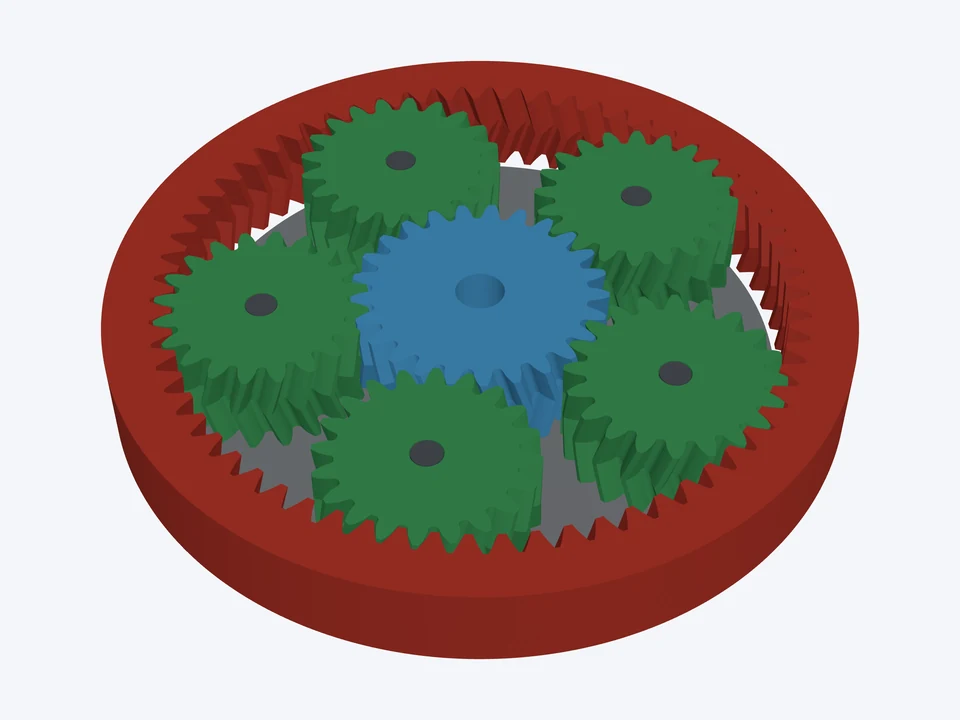

The set · Module 1.5 · 20° · herringbone

3.6 : 1 reduction: the ring is held, the sun is the input and the carrier the output.

Notes

Hardware: 5 × planet pin Ø5 × 20.5 mm.
Cantilevered pins: AGMA 6123 §10.7.3 keeps this to low face width to diameter ratios; retain each planet on its pin.
The Strength check rates spur sets only: helical and herringbone sets aren't rated yet.

The link opens the whole set in the Planetary Gear Designer's 3D view. Change the teeth, the number of planets or stages, which member is held, the carrier, bores or hubs, then download STL, STEP or the carrier's DXF and SVG.
