Sample · module 2 · 20° stub

24T : 36T · 20° stub teeth

Short, stout 20° stub teeth for shock loads: a 1.5 : 1 pair.

Industrial24 : 36

Build it with your AI

Using the CheapCAD Tools connector, design a two-gear drive in Gear Designer: module 2 mm, 20° stub teeth, face width 16 mm. Gear 1: 24 teeth, a 12 mm bore, D-flat 1 mm deep. Gear 2: 36 teeth, a 15 mm bore, D-flat 1 mm deep. Check the design, apply any Auto-fix it suggests, then export both gears as STL and give me the download link.

Paste it into Claude, ChatGPT or any AI app with the CheapCAD Tools connector, and it designs this gear set with you, checks it and hands you the files. How to connect your AI.

What's in this design

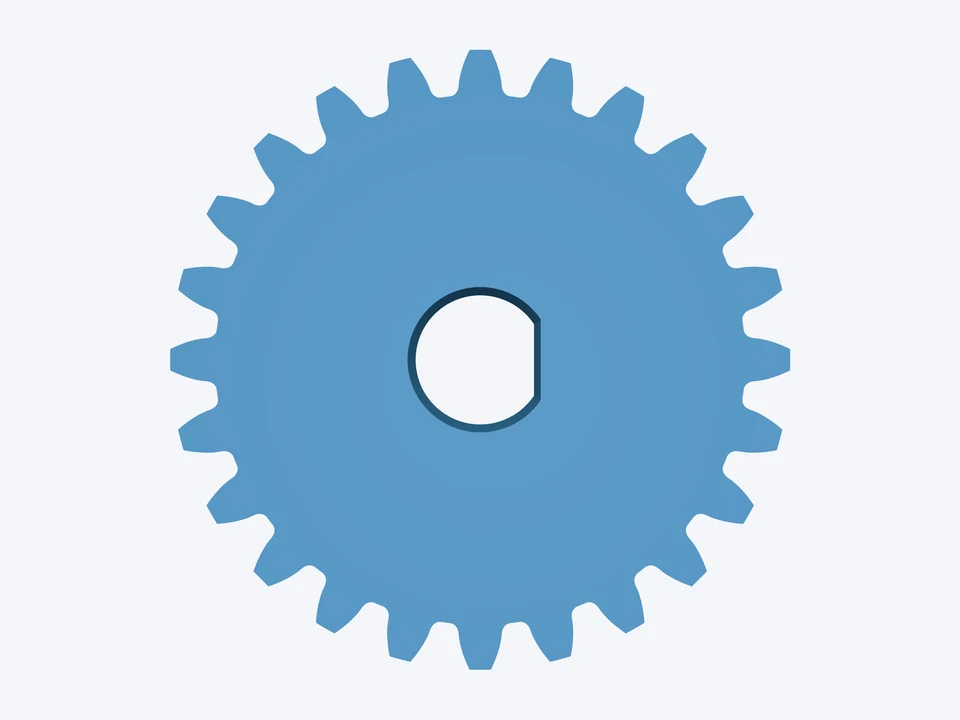

Gear 1 · 24 teeth

24T gear · tip Ø51.2 mm · bore Ø12 mm D-flat

Gear 2 · 36 teeth

36T gear · tip Ø75.2 mm · bore Ø15 mm D-flat

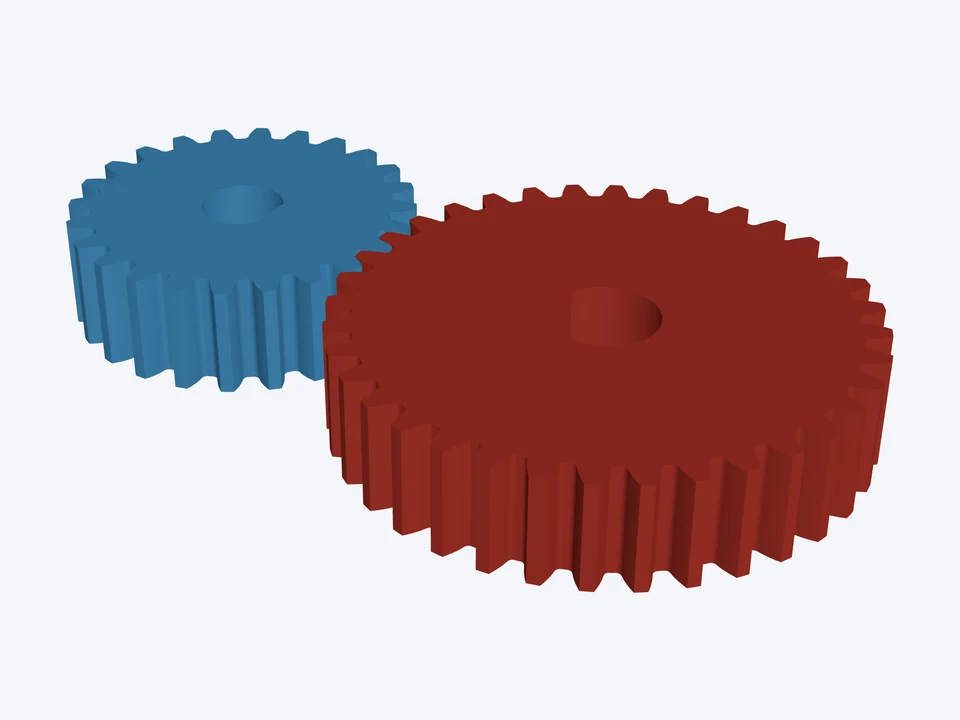

The mesh · module 2 · 20° stub

ratio 1.5 : 1 · centre distance 60 mm · contact ratio 1.36 · backlash 0.124–0.234 mm

The link opens both parts in the Gear Designer's 3D Mode. Change the teeth, module or pitch, bore, hub or spokes, then download STL, STEP, DXF or SVG.
