Sample · module 2 · 20°

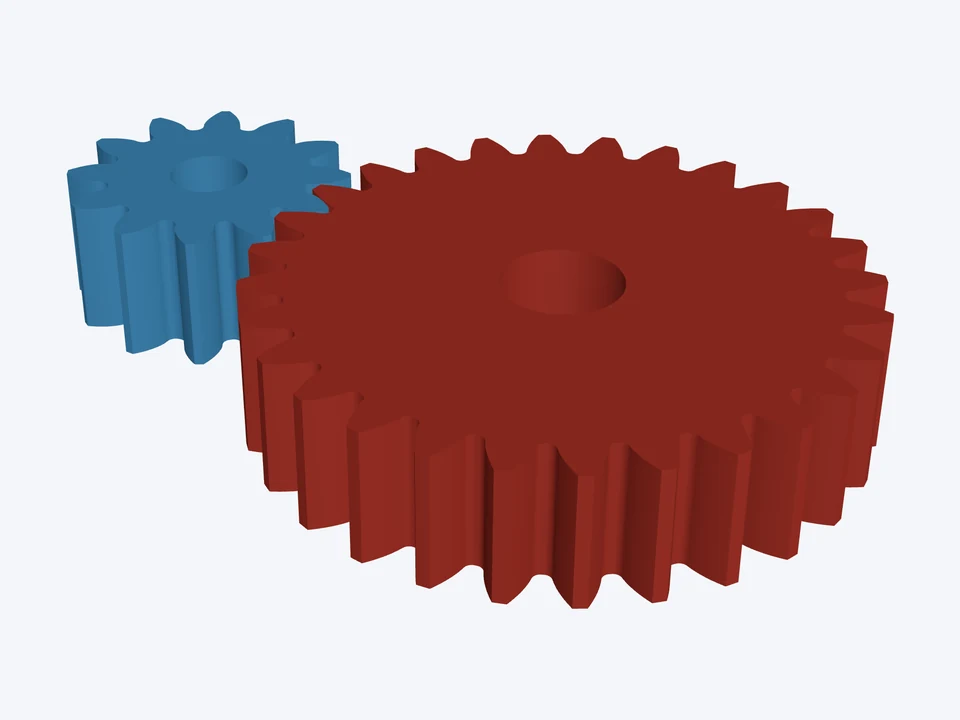

12T : 28T · profile-shifted

Profile shift at work: a 12-tooth pinion without undercut, the centre distance stretched from 40 to 41.75 mm.

Industrial12 : 28

Build it with your AI

Using the CheapCAD Tools connector, design a two-gear drive in Gear Designer: module 2 mm, face width 14 mm. Gear 1: 12 teeth, profile shift x = 0.5, an 8 mm bore. Gear 2: 28 teeth, profile shift x = 0.5, a 12 mm bore. Check the design, apply any Auto-fix it suggests, then export both gears as STL and give me the download link.

Paste it into Claude, ChatGPT or any AI app with the CheapCAD Tools connector, and it designs this gear set with you, checks it and hands you the files. How to connect your AI.

What's in this design

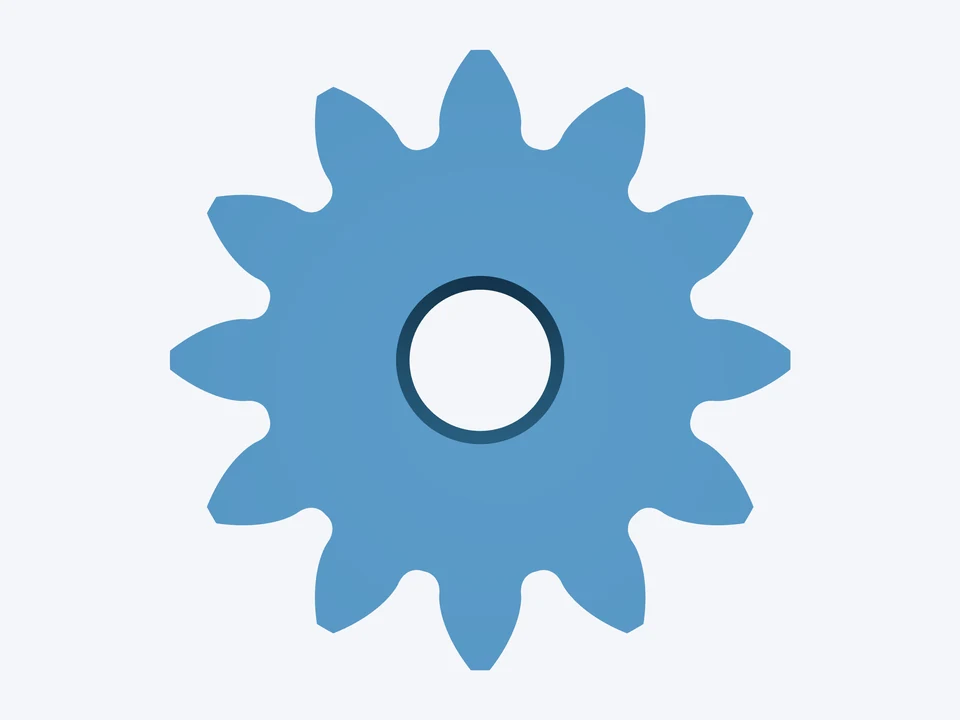

Gear 1 · 12 teeth

12T gear · tip Ø29.5 mm · x = 0.5 · bore Ø8 mm

Gear 2 · 28 teeth

28T gear · tip Ø61.5 mm · x = 0.5 · bore Ø12 mm

The mesh · module 2 · 20°

ratio 2.33 : 1 · centre distance 41.75 mm · contact ratio 1.23 · backlash 0.124–0.234 mm

The link opens both parts in the Gear Designer's 3D Mode. Change the teeth, module or pitch, bore, hub or spokes, then download STL, STEP, DXF or SVG.
