Sample · module 1 · 20° · ISO 53 rack D

40T : 80T · precision, rack D

A precision 2 : 1 pair: ISO 53 rack D, tight DIN 3967 backlash, hub pins to a mating part.

Industrial40 : 80

Build it with your AI

Using the CheapCAD Tools connector, design a two-gear drive in Gear Designer: module 1 mm, ISO 53 basic rack D, face width 10 mm. Gear 1: 40 teeth, DIN 3967 backlash allowance 24e, a 10 mm bore, a hub on one face, Hub OD 24 mm, Hub Height 8 mm, 3 hub pins of 3 mm. Gear 2: 80 teeth, DIN 3967 backlash allowance 24e, a 12 mm bore, a hub on one face, Hub OD 30 mm, Hub Height 8 mm, 4 hub pins of 4 mm. Check the design, apply any Auto-fix it suggests, then export both gears as STL and give me the download link.

Paste it into Claude, ChatGPT or any AI app with the CheapCAD Tools connector, and it designs this gear set with you, checks it and hands you the files. How to connect your AI.

What's in this design

Gear 1 · 40 teeth

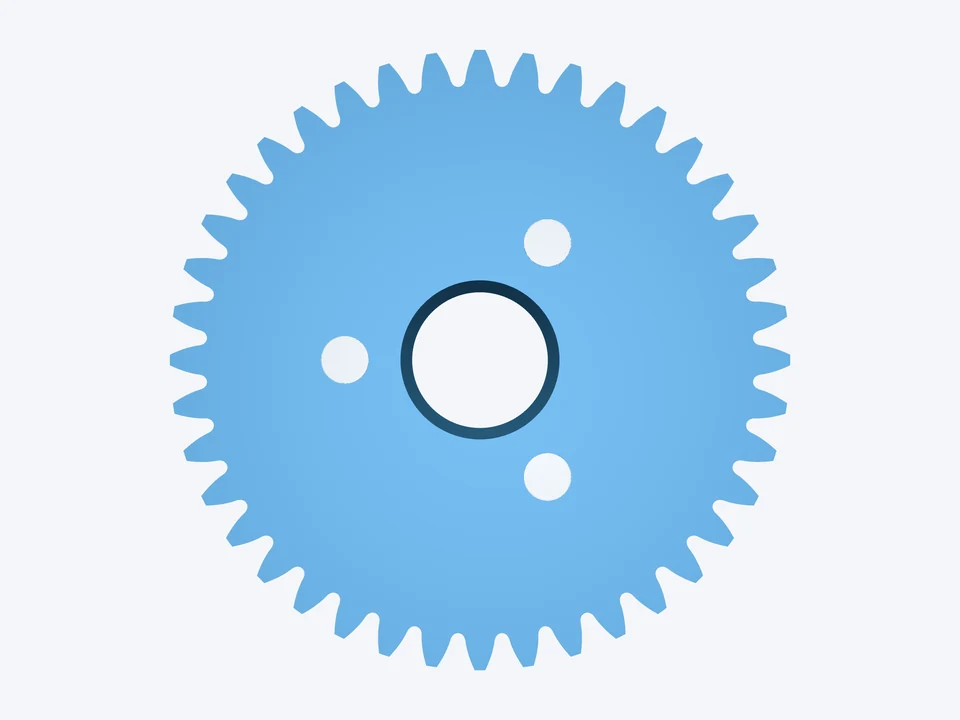

40T gear · tip Ø42 mm · bore Ø10 mm · hub Ø24 · 3 × Ø3 hub pins · backlash 24e

Gear 2 · 80 teeth

80T gear · tip Ø82 mm · bore Ø12 mm · hub Ø30 · 4 × Ø4 hub pins · backlash 24e

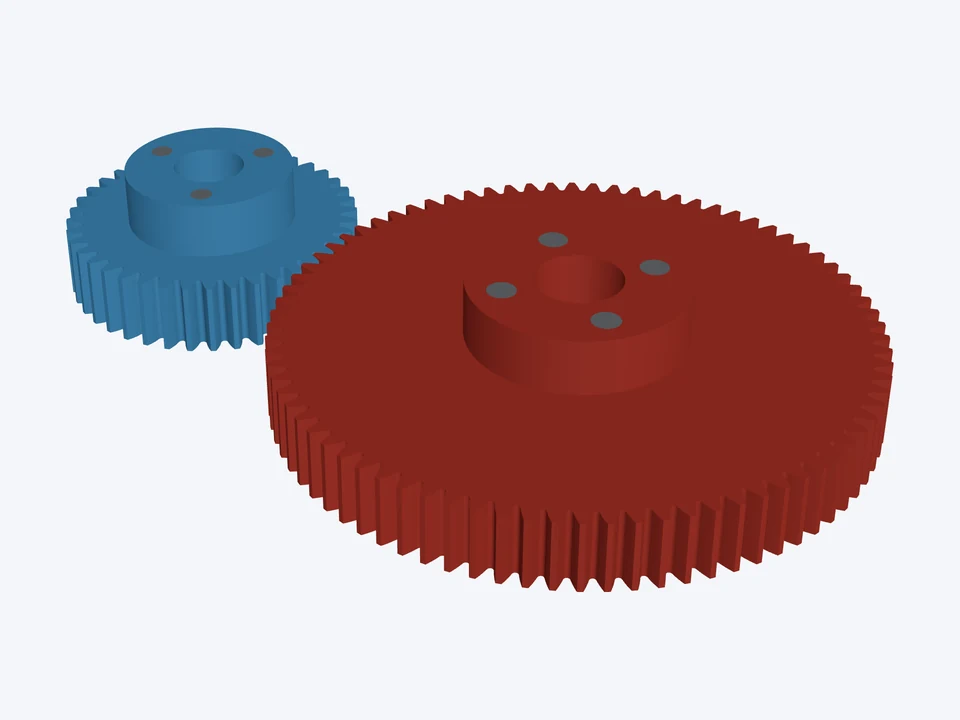

The mesh · module 1 · 20° · ISO 53 rack D

ratio 2 : 1 · centre distance 60 mm · contact ratio 1.77 · backlash 0.07–0.115 mm

The link opens both parts in the Gear Designer's 3D Mode. Change the teeth, module or pitch, bore, hub or spokes, then download STL, STEP, DXF or SVG.
